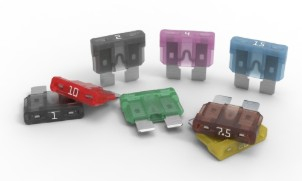

ATOF® Automotive Blade Fuse

Please login to order and view personalised prices.
Ampage
Please select from the options above.

ATOF® automotive blade fuses were developed to take the place of obsolete ATO Series 257 fuses. Automakers consider ATOF fuses standard equipment for protecting low-voltage circuits.

Features

  • Fast-acting
  • Available with ratings of 1 A to 40 A
  • Interrupting rating of 1 kA at 32 V dc
  • Silver- or tin-plated terminals
  • Operate at up to 125 ?
  • Silver-plated terminals can reach 150 ? at contact
  • Net weight 1.4 g ±5 % per fuse
  • UL 94 flammability rating of V-2
  • RoHS compliant and certified lead-free

Benefits

  • Colour coding indicates ampere rating
  • See-through housing makes it easier to see when fuse blows
  • Checkpoints on top make it possible to measure resistance without removing the fuse
  • High-contrast ampere stamps aid identification
BrandEGIS
Ampage5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A
