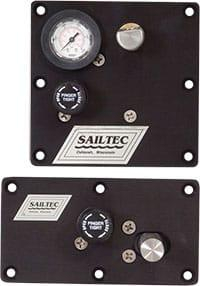

Sailtec Single Action Pump
Sailtec’s T6FB is the ideal solution where space behind the proposed panel location is limited.
Shallow Projection/Flat Back Single Action Panel Pump
Space Saving Panel Pump
Compact - High Volume - High Power
This popular, single-acting hydraulic pump provides a popular yet economical option for remote cylinder control.
FEATURES:
• Shallow 2 ¬-1/16" depth
• 3.3 ml of oil per stroke
• 5,000 psi (350 bar) Pressure Output
• Unlimited Mounting Options
• SAE ports with Zero Leak® Plugs
• Large Easy to Read Gauge
SAILTEC's T6FB Single Acting Panel Pump operates many marine hydraulics including:
• Backstay
• Forestay
• Outhaul
• Flattening Reef
• Cunningham
• Boom Vang
• Pivoting Keels
• Retracting Keels
• Canting Keels
• Pivoting Centreboards
• Transom Gates
• Hatch Doors
• Swim Platforms
• Deflectors
T6 FLATBACK ATTRIBUTES
• Single acting panel pump is economical to purchase and maintain.
• 5,000 psi pressure output allows system to use smaller cylinders, which are lighter & cost less.
• Small 6" by 6" panel face dimensions and shallow 2 ¬⁄" depth provides endless mounting choices.
• Flush pump surfaces allow installation into steering pedestals and other difficult mounting locations.
• Modified pump bore orientation & longer piston stroke produces 3.3 ml of oil.
• New slim profile 316 stainless steel handle with soft comfortable handgrip.
• SAE style ports with Zero Leak® plugs for ease of maintenance.
• New custom moulded single piece poly oil reservoir for easy mounting and enhanced appearance.
• Can easily replace most original SAILTEC T6 model panel pumps.
|
Cylinder Rams
|
To Retract 10" (254mm)
|
|
|
Pump Strokes Needed
|
Seconds Needed
|
|
|
-10
|
58
|
30
|
|
-12
|
84
|
45
|
|
-17
|
124
|
70
|
|
-22
|
160
|
90
|
| Brand | Sailtec |
|---|---|
| Functions | 1, 2, 3-4 |
