Sailtec Power Packs

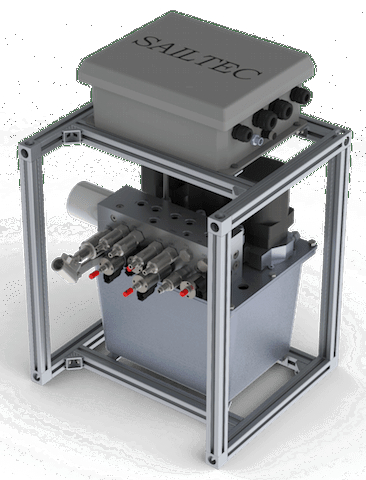

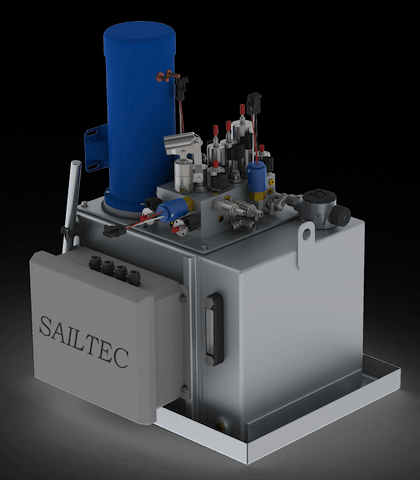

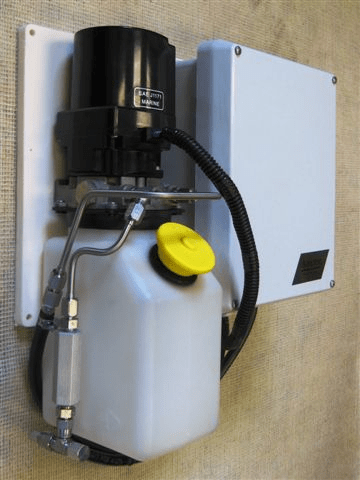

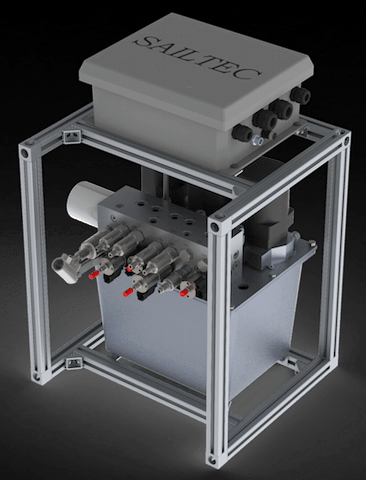

SAILTEC Hydraulic Power-Pack Systems
Custom-Built – To Order Only | Price on Application (POA)
SAILTEC’s compact and lightweight Hydraulic Power-Pack is engineered to deliver fast, push-button control for a wide range of onboard hydraulic systems. Built for performance and reliability, this unit is ideal for both new builds and retrofit applications.
Typical Applications Include:
- Backstay & Forestay
- Boom Vang & Outhaul
- Cunningham & Flattening Reef
- Retracting Keels & Pivoting Centreboards
- Transom Gates, Hatch Doors & Swim Platforms
Key Features:
- Compact, lightweight design
- Precision cylinder control
- Remote mounting capability
- Easy installation
- Marine-rated motors and components
- 12V or 24V DC power options with low amp draw
- Oil pressure output up to 3,500 psi (242 bar)
- Oil flow up to 2.8 L/min (170 cu in/min)
- Reservoir sizes: 1, 2, or 4 quarts
- Vertical or horizontal mounting options
Enhanced System Attributes:
Tested under six months of saltwater race conditions, SAILTEC’s latest design refinements deliver superior durability and performance:
- Keyed lock-out device
- Deutsch electrical connections
- Corrosion-resistant solenoid
- IP68 sealed entry points
- Marine-rated enclosure
- Stainless steel fittings
- Anodized aluminium check valves
- Million-cycle illuminated switches
System Integration:
The Power-Pack is compatible with both manual and electronic valving systems, offering flexible multi-function control across your hydraulic network.
Please Note:
All Hydraulic Power-Pack Systems are built to order only and available Price on Application (POA).
For specifications, lead times, or to discuss system requirements, please contact our technical team.
| Brand | Sailtec |
|---|---|
| Voltage | 12vDC, 24vDC |
