2:1 Blocks

Please login to order and view personalised prices.
Sheave Diameter
Please select from the options above.

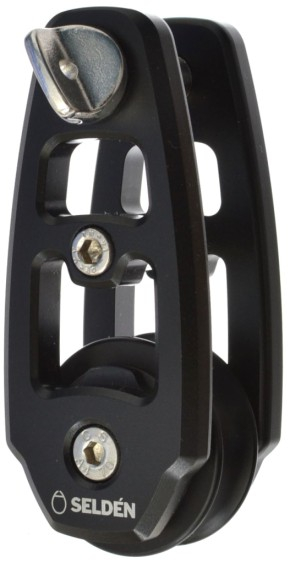

This block is used for 2:1 purchase for a Code 0 or main halyard. The pin is captive. No risk dropping it over board.

Item NoSheave Diameter (mm)L1 (mm)L2 (mm)W (mm)D (mm)Safe working Load (kg)Breaking Load (kg)Max line size (mm)Match
403-501-01 30 66 21 13 8 1500 3000 10 CX15
404-501-01 40 83 26 18 10 2500 5000 12 CX25
405-501-01 50 104 31 24 12 4000 8000 16 CX40
BrandSeld
Sheave Diameter30mm, 40mm, 50mm

There are no downloads for this product.
