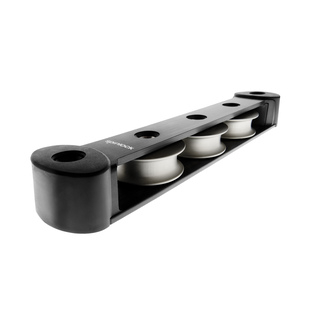

Spinlock High Load Sheave Deck Organiser (Asymmetric)
T-Series Organisers lead multiple lines back from the mast to banks of powerclutches
Product Info
- TC50 organisers are specially developed for higher loads
- Minimal overall length
- Efficient bearings surface reduces winch effort and increases halyard life
- Integral end fairings for safe side loading
- Double stack versions available
- TC50 can ‘stack’ for limited deck area or adding extra capacity. T50 will also ‘stack’ on a TC50
- Can be used as an Aft Organiser to divert lines from a clutch to a winch
Sheave Diameter / Type
TC50 - 50mm (2") alloy
TC50/D - 50mm (2") alloy
SWL per sheave
TC50 - 1500kg (3300lbs)
TC50/D - 1000kg (2200lbs) upper row
TC50/D - 1500kg (3300lbs) lower row
Total SWL per unit
TC50 - Number of sheaves x 750kg (1650lbs)
TC50/D - Number of sheaves x 500kg (1100lbs) upper row
TC50/D - Number of sheaves x 750kg (1650lbs) lower row
Line Diameter
TC50 - Up to 14mm (9/16")
TC50/D - Up to 14mm (9/16")
Weights
TC50 - 575g (20.1oz) for a 2 sheave organiser
add 130g (4.6oz) per extra sheave
TC50/D - 750g (26.3oz) for a 2 sheave organiser
add 215g (7.5oz) per extra pair of sheaves
Fasteners
TC50 - M8 (5/16") CSK Supplied
TC50/D - M8 (5/16") CSK Supplied
| Brand | Spinlock |
|---|---|
| Number of Sheaves | 2, 3, 4, 5, 6 |
| Stack Type | Single, Double |
| Loose or Carded (for Retail) | Loose, Carded |
