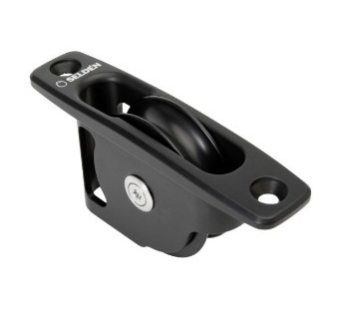

Aluminium blocks with ø60 mm plain bearing sheave, supported by ball bearings to compensate for side load.
Technical features
- Machined and anodized aluminium sheave and holder
- ø4 mm Delrin ball bearings for axial load (side load)
- 406-501-14: For routing a line through the coaming, deck or transom. Purpose made for hoisting/lowering a swim platform. C-c 105 mm between holes.
Specifications
- Weight: 171.00 g
- BlockType: td,single
- SubType: td single
- Breaking Load: 3000 kg
- Safe working Load: 1500 kg
- System: APB60
- Max line size: 12 mm
- Mounting: 2xM6
Brand | Selden |
---|
There are no downloads for this product.
