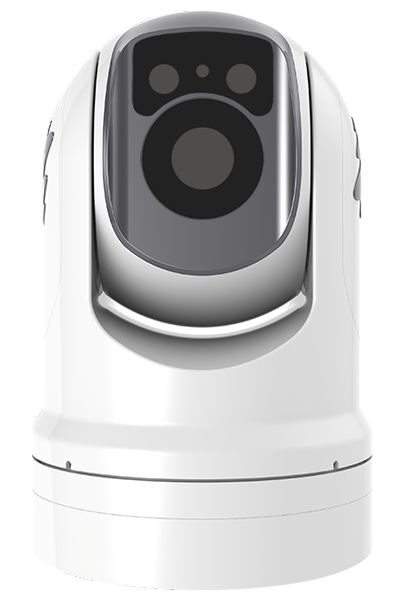

InfraVision - Ulysses Micro C Camera - White

Please login to order and view personalised prices.
£5,039.37 (exc VAT) per EACH
£6,047.24 (inc VAT)

High performance marine colour camera

The Ulysses Micro C is a dedicated low-light camera system that is, specifically designed for easy installation on small and fast boats.

Built upon the reliable Ulysses Micro platform, it incorporates an exceptionally sensitive low-light imaging sensor, enabling the streaming of high-definition video that remains sharp and clear regardless of the lighting conditions.

This system is an excellent choice for boaters looking to extend their time at sea!

Easy Integration

Wide interfacing options and seamless integration to most MFDs.

  • Radar tracking with MARPA
  • Slew-to-Cue
  • Video Tracking

Compact & Rugged

The Ulysses Micro C compact design makes for easy installation on any vessel.

  • Compact and cost effective
  • Ideal for small, fast boats

Key Features

  • Wide interfacing options
  • Radar slave function
  • Low power consumption
  • Rugged / weatherproof construction

General

  Micro Micro S Micro S+
Sensor Type 17um Microbolometer FPA
Thermal Resolution 384 X 288 384 X 288 640 X 480
Field of View 29° (H) x 22° (V) 24° (H) X 18° (V) 24° (H) X 18° (V)
Stabilization N Y Y
Focal Length 13mm 15mm 25mm
Zoom Continuous E-Zoom 1.0X – 4.0X

System Specifications

Tilt Coverage Pan: Continuous 360° Tilt: 100° / -90°
Gyro Stabilisation N Y Y
Video Output HDMOL, IP video
Video Frame Rate 30Hz
Power Consumption 25W (max)
Power Requirements POE

Environmental

Operating Temperature Range -25°C to +55°C (-13°F to 131°F)
Storage Temperature Range -30°C to +70°C (-22°F to 158°F)
Encapsulation IP66
EMI IEC 60945
Salt Mist IEC60945
Vibration IEC 60945
Wind 115mph / 100kn

Range Performance

  Micro Micro S Micro S+
Detect Man (6ft X 1.5ft) Up to 359m (0.22mi) Up to 414m (0.26mi) Up to 689m (0.43mi)
Small Vessel (13ft X 5ft) Up to 924m (0.57mi) Up to 1066m (0.66mi) Up to 1770m (1.10mi)

Dimensions

Size 220mm X 140mm (8.7” X 5.5”)
Weight ≤2.5kg (5.5lb)

Other

Standard Package Camera Turret 30ft Camera Harness
Junction Box
Installation Manual
Mounting Decal
Warranty 2 Year
Optional Accessories Joystick Control
100ft Camera Harness
Riser



ColourWhite
BrandInfraVision
