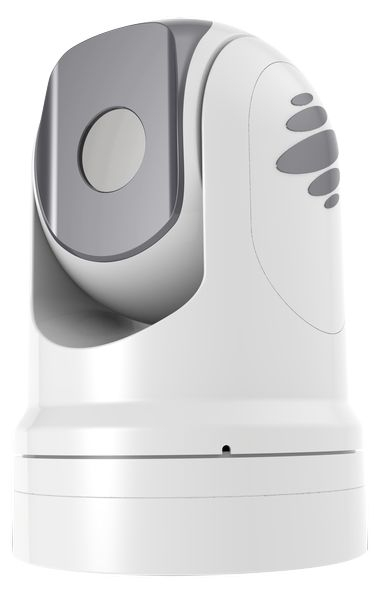

InfraVision - Ulysses Thermal Camera MICRO - White

Please login to order and view personalised prices.
£3,781.68 (exc VAT) per EACH
£4,538.02 (inc VAT)

The new Ulysses micro is a compact marine thermal camera and night vision system specifically designed for small, fast boat installation.

As with the larger Ulysses, the Ulysses micro features a high-performance sensing package that delivers a high-speed thermal image with superior clarity and sharpness unseen in competing products. This enhanced performance significantly extends operational safety and confidence at sea in all lighting conditions.

Infravision Technology specializes in Forward Looking Infrared Thermal cameras, infrared cameras, thermal imaging cameras, and thermal imaging. Their IR Camera products are second to none with their thermal scanning and infrared imaging.

Easy Integration

Wide interfacing options and seamless integration to most MFDs.

  • Radar tracking with MARPA
  • Slew-to-Cue
  • Video Tracking

Compact & Rugged

The Ulysses micro’s compact design makes for easy installation on any vessels.

  • Compact and cost effective
  • Ideal for small, fast boats

Key Features

  • Wide interfacing options
  • Radar slave function
  • Low power consumption
  • Rugged / weatherproof construction



General

  Micro Micro S Micro S+
Sensor Type 17um Microbolometer FPA
Thermal Resolution 384 X 288 384 X 288 640 X 480
Field of View 29° (H) x 22° (V) 24° (H) X 18° (V) 24° (H) X 18° (V)
Stabilization N Y Y
Focal Length 13mm 15mm 25mm
Zoom Continuous E-Zoom 1.0X – 4.0X

System Specifications

Tilt Coverage Pan: Continuous 360° Tilt: 100° / -90°
Gyro Stabilisation N Y Y
Video Output HDMOL, IP video
Video Frame Rate 30Hz
Power Consumption 25W (max)
Power Requirements POE

Environmental

Operating Temperature Range -25°C to +55°C (-13°F to 131°F)
Storage Temperature Range -30°C to +70°C (-22°F to 158°F)
Encapsulation IP66
EMI IEC 60945
Salt Mist IEC60945
Vibration IEC 60945
Wind 115mph / 100kn

Range Performance

  Micro Micro S Micro S+
Detect Man (6ft X 1.5ft) Up to 359m (0.22mi) Up to 414m (0.26mi) Up to 689m (0.43mi)
Small Vessel (13ft X 5ft) Up to 924m (0.57mi) Up to 1066m (0.66mi) Up to 1770m (1.10mi)

Dimensions

Size 220mm X 140mm (8.7” X 5.5”)
Weight ≤2.5kg (5.5lb)

Other

Standard Package Camera Turret 30ft Camera Harness
Junction Box
Installation Manual
Mounting Decal
Warranty 2 Year
Optional Accessories Joystick Control
100ft Camera Harness
Riser





BrandOmnisense-Systems
