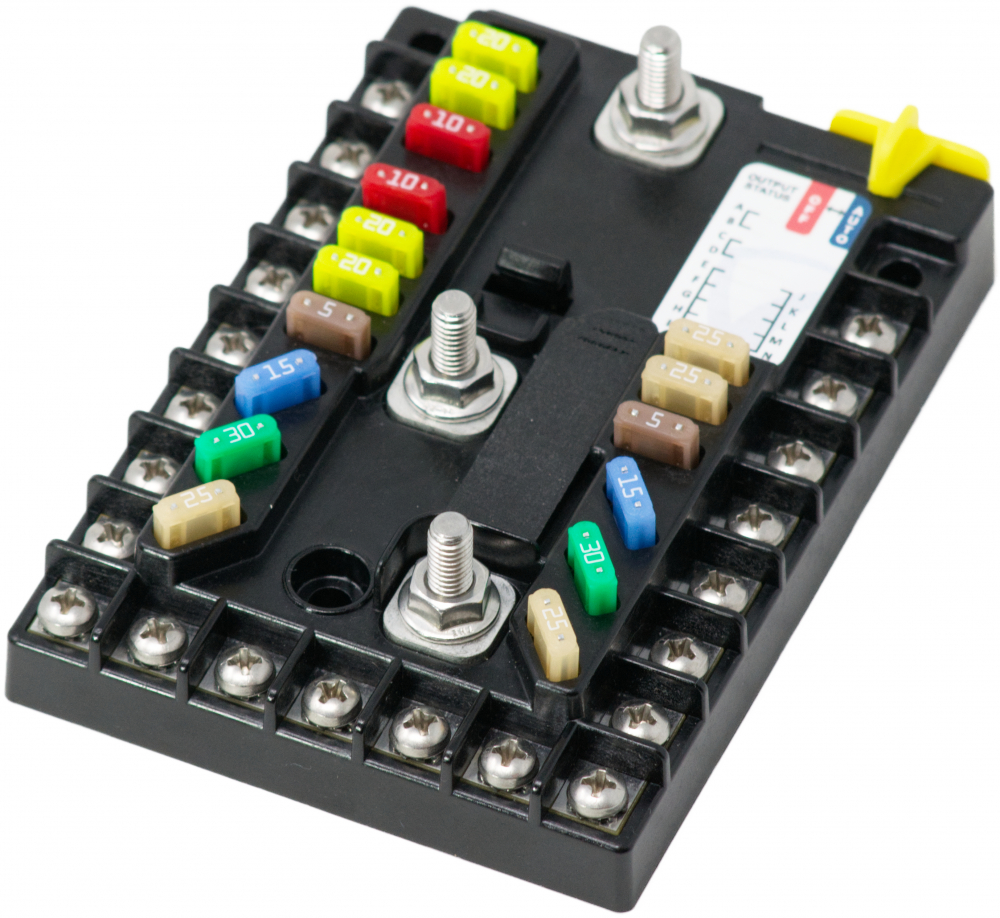

EGIS - Power Distribution Module 14 Circuit
Applications / Problems This Solves
Compact Solution Combines Intelligent Battery Protection, Power Switching, Circuit Protection, Ground Return Buss, and Optional Manual Override Switch.
Reduce Install Space and Total Installed Cost Four (4) Separate Functions in One Product
Three (3) High-Amp (1-45A) Outputs Allow Protection All Circuits with One Solution
Three Output Groups Independently Set to 24/7, Ignition Switched, or Time Delay
Expandable Up to 31 Fused Outputs with RT or CT series Fuse Blocks
Feature Summary
Ultra-Low Power Draw eliminates vehicle downtime due to dead batteries. Lowest off-state current draw (1.3 mA).
Optional Under and Over Voltage Protection prevents battery and electrical load damage, can optionally be applied to 24/7 configured outputs for additional protection.
LED Indicators for On/Off, Blown Fuse Indication, or Voltage/Temp Abnormalities
Ignition or V-Sense trigger options for on/off.
Remote and Local Kill Switch Options: Provide unique ability to isolate all auxiliary loads, including optionally outputs set to 24/7
4 Year Industry Leading Warranty
| Brand | Egis Mobile Electric |
|---|---|
| Type | With Kill Switch, Without Kill Switch |
