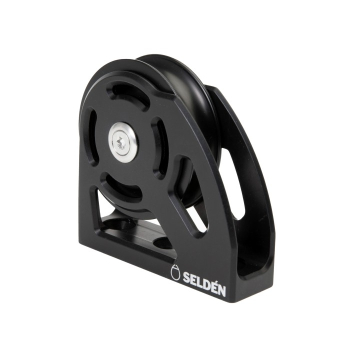

Aluminium blocks with ø60 mm plain bearing sheave, supported by ball bearings to compensate for side load.
Technical features
- Machined and anodized aluminium sheave and holder
- ø4 mm Delrin ball bearings for axial load (side load)
- 406-501-13: Ideal for routing halyards from the mast to an organizer or straight to the cockpit. C-c 28 mm between each of the three holes.
Specifications
- Weight: 173.00 g
- BlockType: Halyard Block
- SubType: Mastbase
- Breaking Load: 2400 kg
- Safe working Load: 1200 kg
- System: APB60
- Max line size: 12 mm
- Mounting: 3xM6
Brand | Selden |
---|
