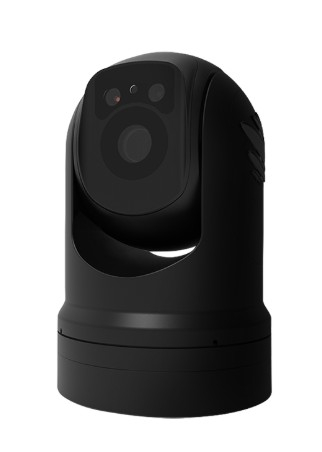

InfraVision - Ulysses Micro C Camera - Black
£5,039.37 (exc VAT) per EACH
£6,047.24 (inc VAT)
£6,047.24 (inc VAT)
High performance marine colour camera
The Ulysses Micro C is a dedicated low-light camera system that is, specifically designed for easy installation on small and fast boats.
Built upon the reliable Ulysses Micro platform, it incorporates an exceptionally sensitive low-light imaging sensor, enabling the streaming of high-definition video that remains sharp and clear regardless of the lighting conditions.
This system is an excellent choice for boaters looking to extend their time at sea!
Easy Integration
Wide interfacing options and seamless integration to most MFDs.
- Radar tracking with MARPA
- Slew-to-Cue
- Video Tracking
Compact & Rugged
The Ulysses Micro C compact design makes for easy installation on any vessel.
- Compact and cost effective
- Ideal for small, fast boats
Key Features
- Wide interfacing options
- Radar slave function
- Low power
- Rugged / weatherproof construction
General
| Sensor Type | 8.5MP CMOS |
| Horizontal Field of View (HFOV) | 35.4º x 20º (Wide) 9º x 5.2º (Tele) |
| Lens | Tamron DF30Q |
| Resolution | FHD |
| Thermal Resolution | N/A |
| Field of View | Wide 30º x 17º to effective tele 2.6º x 1.5º |
| Stabilization | Yes |
| Focal Length | N/A |
| Zoom | 12X HyperZoom / E-zoom 48X |
System Specifications
| Tilt Coverage | Pan: Continuous 360° Tilt: 100° / -90° |
| Gyro Stabilization | Yes |
| Video Output | HDMI, IP Video |
| Video Frame Rate | 30Hz |
| Power Consumption | 25W (max) |
| Power Requirements | PoE |
Environmental
| Operating Temperature Range | -13°F to 131°F |
| Storage Temperature Range | -22°F to 158°F |
| Encapsulation | IP66 |
| EMI | IEC 60945 |
| Salt Mist | IEC60945 |
| Vibration | IEC 60945 |
| Wind | 115 mph |
Range Performance
| Detection (25ppm) | Up to 1.1km (0.68mi) (25ppm) |
Dimensions
| Size | 220mm X 140mm (8.7” X 5.5”) |
| Weight | ≤2.5kg (5.5lb) |
Other
| Standard Package | Camera Turret 30ft Camera Harness Junction Box Installation Manual Mounting Decal |
| Optional Accessories | Joystick Control 100ft Camera Harness Riser |
| Colour | Black |
|---|---|
| Brand | InfraVision |
There are no downloads for this product.
