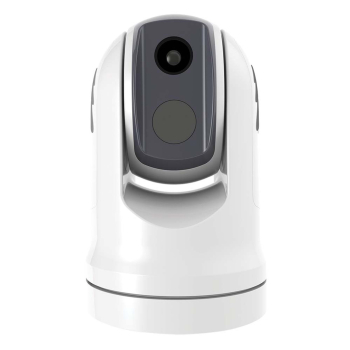

InfraVision - Ulysses Thermal Camera Mini+ - White
£32,042.41 (inc VAT)
Robustly Constructed, Beautifully Crafted.
Ulysses mini is sculpted from rugged materials and exquisitely Awlgrip finished with a topcoat.
The camera even comes with customizable LED lights that can match any vessel’s theme. The Ulysses mini is the ultimate performance accessory for your boat!
The new Ulysses mini is a high-performance, gyro-stabilized marine thermal imaging system featuring a day and night camera that delivers superior images in any lighting condition for demanding yacht masters and mariners.
Infravision Technology specializes in forward looking infrared thermal cameras, infrared cameras, thermal imaging cameras, and thermal imaging.
High-resolution 640×480 thermal camera.
High-performance 4K capable, day and low-light CMOS camera.
Smooth images, real-time awareness, and quick response.
Gyro-stabilized for steady viewing in rolling seas.
Wide display interfacing options.
Advanced MFD/mobile app touch-screen control.
Radar Slave and other advanced network functions.
Low power consumption.
General
| Thermal Camera | Color Camera | |
| Sensor Type | 17um uncooled microbolometer | 8.5MP CMOS |
| Horizontal Field of View (HFOV) | 35.4º x 20º (Wide) 9º x 5.2º (Tele) | |
| Lens | Tamron DF30Q | |
| Resolution | FHD | |
| Thermal Resolution | 640 x 480 | 640 x 480 |
| Field of View | 24° X 18° (Mini) / 18° X 13.5° (Mini+) | 24° (H) X 18° (V) |
| Stabilization | Yes | Yes |
| Focal Length | 25mm | 25mm |
| Zoom | Continuous electronic zoom to 4X | 12X HyperZoom / E-zoom 48X |
System Specifications
| Pan / Tilt Coverage | Pan: Continuous 360° Tilt: 100°, -90° |
| Gyro Stabilisation | Yes |
| Video Output | HDMI, IP video |
| Video Frame Rate | 30Hz |
| Power Consumption | 25W (max) |
| Power Requirements | PoE |
Environmental
| Operating Temperature Range | -25°C to +55°C (-13°F to 131°F) |
| Storage Temperature Range | -30°C to +70°C (-22°F to 158°F) |
| Encapsulation | IP 66 |
| Vibration | IEC 60945 |
| Lightening Protection | Standard |
| Salt Mist | IEC60945 |
| Wind | 115mph / 100kn |
| EMI | IEC 60945 |
Range Performance
| Mini | Mini+ | |
| Detect Man (5.9 ft x 1.5 ft) | Up to 689m (0.43mi) | Up to 963m (0.60mi) |
| Small Vessel (13 ft x 4.9 ft) | Up to 1770m (1.10mi) | Up to 2467m (1.53mi) |
Dimensions
| Size | 301mm X 187mm (11.8″ X 7.4″) |
| Weight | 7kg (15.4lb) |
Other
| Standard Package | Camera Turret 30ft Camera Harness Junction Box Installation Manual Mounting Decal |
| Warranty | 2 Year |
| Optional Accessories | Joystick Control 100ft Camera Harness Riser |
| Brand | InfraVision |
|---|
There are no downloads for this product.
