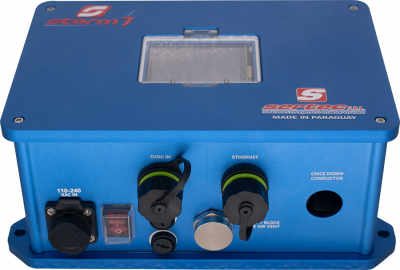

SERTEC STORM 7 BLUE MONITOR 12/24v WIFI Enabled
Lightning Protection Condition Monitoring

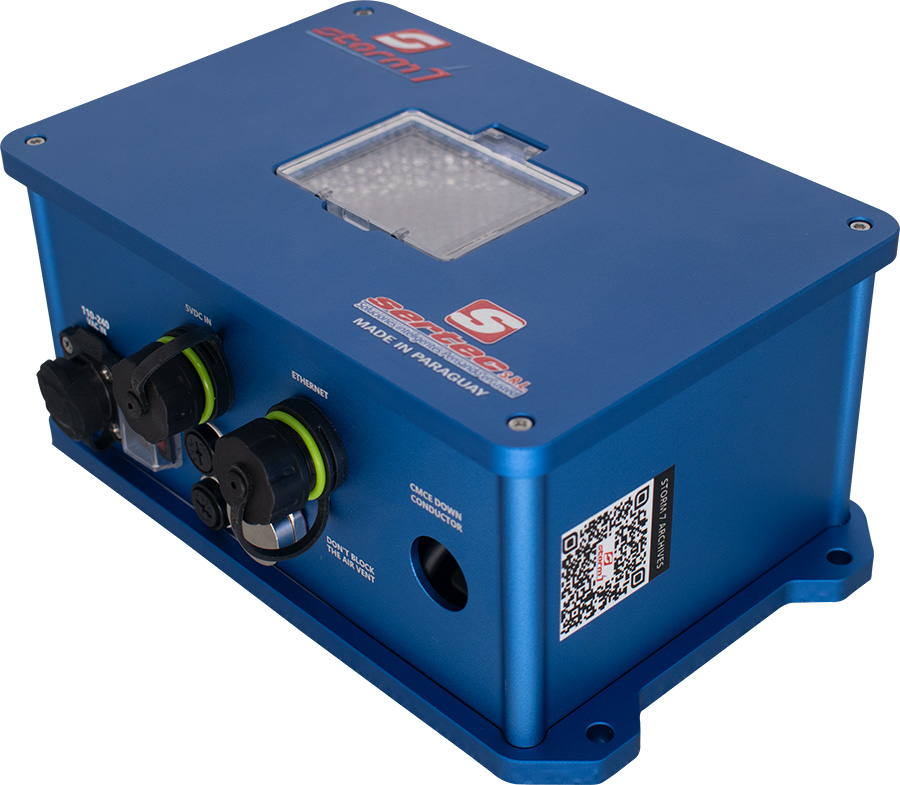

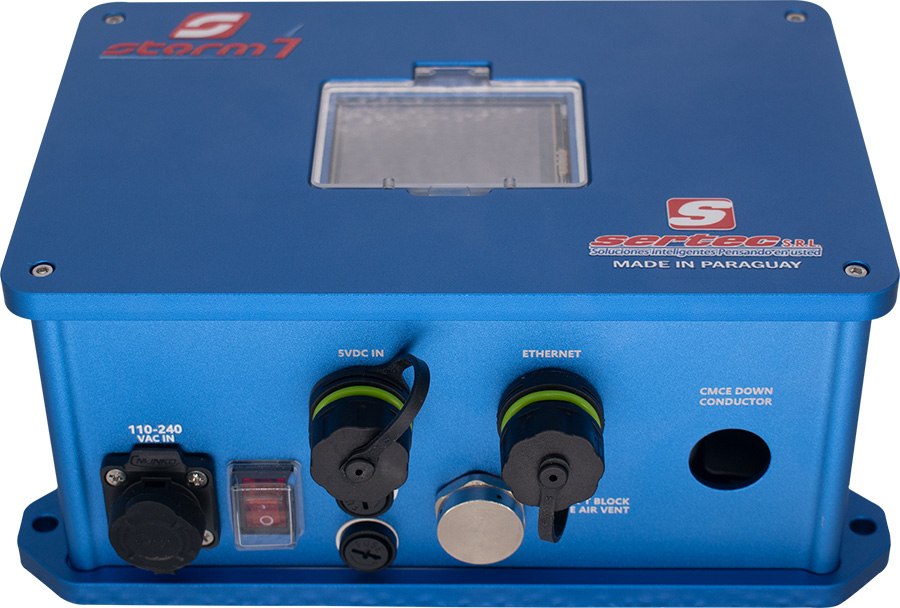

The Sertec Marine Storm 7 Blue is a robust, IP67-rated condition monitoring device designed specifically for use with the Sertec CMCE Lightning Protection System. Engineered for professional vessels, it provides real-time reassurance that your lightning protection system is operational and ready when it matters most.
Confidence When It Counts
Lightning protection is critical—but without clear system status, crews are left guessing. The Storm 7 Blue removes uncertainty by continuously monitoring the condition of the CMCE device, giving captains and operators immediate confidence that their vessel is protected.
Key Features
- Dedicated CMCE Monitoring
Designed specifically to work with the Sertec CMCE lightning protection system, ensuring accurate and reliable condition feedback. - Clear Operational Status
Provides simple, at-a-glance confirmation that the system is functioning correctly - ideal for busy commercial environments. - IP67 Rated Durability
Fully protected against dust ingress and temporary immersion, making it perfectly suited to harsh marine conditions. - Commercial-Grade Reliability
Built for working vessels where uptime, safety, and reassurance are essential.
Peace of Mind for Captains and Crew
The Storm 7 Blue is more than just a monitoring device—it’s a critical reassurance tool. By confirming that your lightning protection system is active and effective, it helps reduce risk, improve safety, and support confident decision-making at sea.
Technical Specifications
Product Name: Sertec Marine Storm 7 Blue
Application: Condition monitoring for Sertec CMCE Lightning Protection System
Electrical
- Supply Voltage: 9–30 V DC (vessel DC systems compatible)
- Power Consumption: Low power draw
- Connection Interface: Hard-wired connection to CMCE unit
Monitoring & Indication
- Function: Continuous condition monitoring of CMCE system
- Status Indication: Visual LED status (system operational / fault condition)
- Alert Type: Real-time status feedback
Environmental
- Ingress Protection: IP67 (dust-tight and protected against temporary immersion)
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -30°C to +70°C
- Humidity: Up to 95% non-condensing
Mechanical
- Housing: Marine-grade sealed enclosure
- Mounting: Surface mount (bulkhead/panel)
- Cable Entry: Sealed gland connection
- Weight: Lightweight, suitable for retrofit installations
| Brand | Sertec Marine |
|---|
